Converter can retain MMI functionality even with B-port in use. Converter emulates on second RS-232 XL50 where communication packets from MMI can be sent or received from connected Excel.

Converter includes integrated emulator of virtual MMI via telnet protocol on port 2222
It is recommended to use putty on windows.

Time programs in C-bus have different structure from Bacnet/IP.
Program consists of daily programs. Daily program entry defines value and time at which will be value applied. Their number is not limited.
Created day programs can be then assigned to specific days in week.
Converter converts time programs to structure compatible with Bacnet. On first save, daily programs Bacnet1, Bacnet2, … Bacnet7 will be created and assigned for each day. Time programs are updated every hour. It is possible to export BV point to Bacnet in order to trigger manual update of time programs from connected Excels.

Properties:

• objectName
• objectType
• presentValue
• statusFlags
• outOfService
• covIncrement
• priorityArray
• relinquishDefault

Excel Points with enabled manual mode will be marked with property outOfService.
Allowed characters for Bacnet point name: 0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ-_!%&~#@$%^.

B-ports transfer rate must be set to 9600 baud. Converter will temporarily set transfer rate to 38400 baud in initialization procedure. Transfer rate will return back to 9600 baud 10 seconds after converter is disconnected. On connection, first converter reads list of connected Excels on C-Bus, then reads list of points and time programs. Implementation supports MMI emulation; reading and writing of points, time programs, date and time.

All version of Excel firmware, except latest XL50, contains bug causing B-port to freeze. This bug occurs approximately twice a year and requires restarting of Excel device.
In case of power failure to Excel while Converter keeps running, there is possibility that Excel will switch to bootstrap mode.
Modem application is activated in XL50 by default. With this modem application, Converter can detect Excel initialization and start communication. This feature can be enabled in Converter settings with entry Enable ATZ detector.

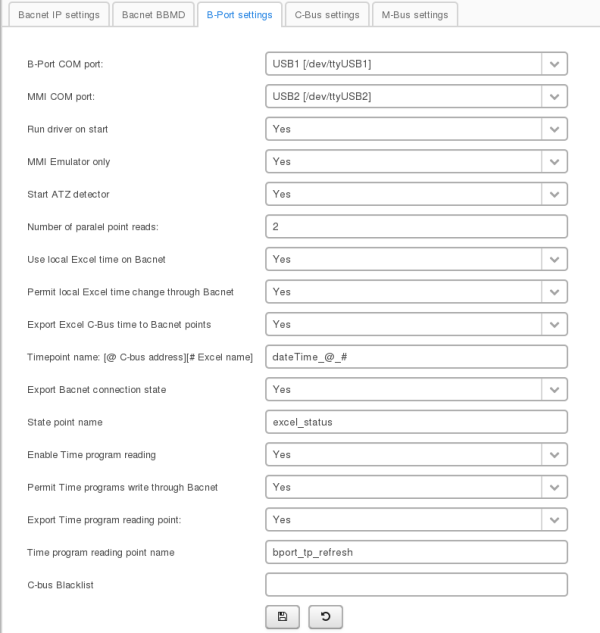

B-Port COM port:
Communication port for connection with Excel
MMI COM port:
Communication port for connection with MMI
Enable ATZ detector:
Enables protection preventing Excel from switching to bootstrap mode in the event of power failure. This function is available when Modem Application is enabled in Excel.
Number of parallel readings:
Parallel reading of points can increase reading speed significantly. Optimal value is in range from 1 to 5.
Use local Excel time on Bacnet:
Enable change of local Excel time through Bacnet:
These options allows time and date from local Excel to be used as return value of Device Object from Bacnet.
Export C-bus time from Excel to points on Bacnet:
Name of time point:
These options allows export time and date of all connected Excels to Bacnet Analog value points. Value can be calculated as [long timeMs = value * 1000000], where timeMs is defined as number of miliseconds from Unix Epoch on January 1st, 1970 at UTC. Point name, Character @ is replaced with C-Bus address and character # is replaced with Excel name.
Export Bacnet connection state:
Name of state point:
Exports Analog Value point with current connection stateExportuje AnalogValue bod v ktorom je aktuálny stav pripojenia.
0 - Disconnected
1 - Initializing Connection
2 - Connected
Enable time programs reading:
Enale time programs writing trough Bacnet:
Export point for reading time programs:
Name of point for reading time programs
Controles for read and write of time programs. Time programs are automatically refreshed from Excel every hour. It is possible to force manual refresh by writing any value to this point.

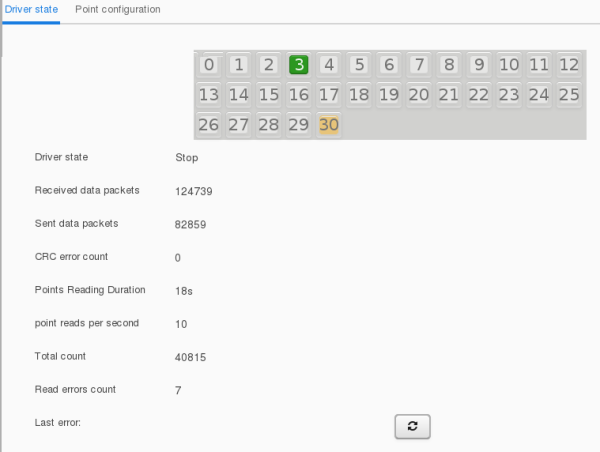

It displays the current status of the driver.
The nice part is an overview of connected devices:

• green - device is active
• orange - address of Blacky Max
• gray - no device
• blue - the device was attached after discorery of points

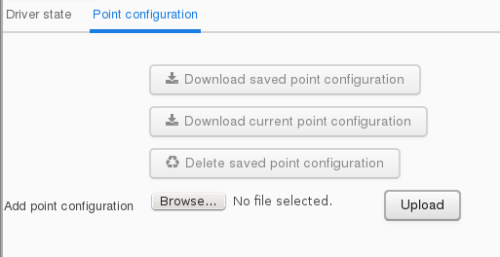

Current points can be exported to xlsx file. Exported file contains one sheet with list of points for each connected Excel. It is possible to rename or change priority of point. By modifying User Point name (column D) you can change the name of point on export to Bacnet.
Priority (column E) defines reading priority. If priority is set to 0, point will not be exported to Bacnet and its reading will be disabled. If priority is set to value greater than 0, on every reading the value decrements and if resulting value is 0, point value will be read and and priority value will be set back to original value defined in xlsx file.
Columns F..XXX can be used for notes.
